Oliver G. answered 01/07/22
Crush Your Chemistry Exams
All the potential energy is converted into kinetic energy when dropping something from a height (neglecting air resistance and energy lost as heat or sound), therefore the kinetic energy will steadily increase until it reaches the ground, therefore C for #1.

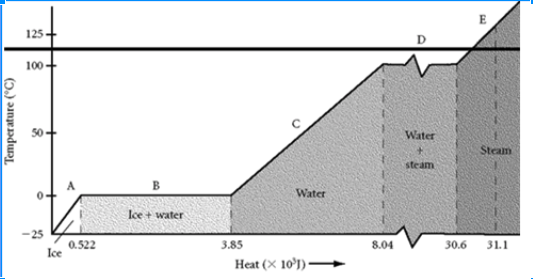

Water undergoes phase changes when the temperature is constant (no slope), therefore points B and D for #2.
Temperature is proportional to kinetic energy of molecules, therefore if temperature goes up so does the kinetic energy of the molecules, therefore C for #3.
The efficiency of an engine is the ratio of output energy / input energy. The output energy is 789 J and the input energy is 2234 J, therefore the efficiency is 789/2234 x 100% = 35%, so B for #4.
